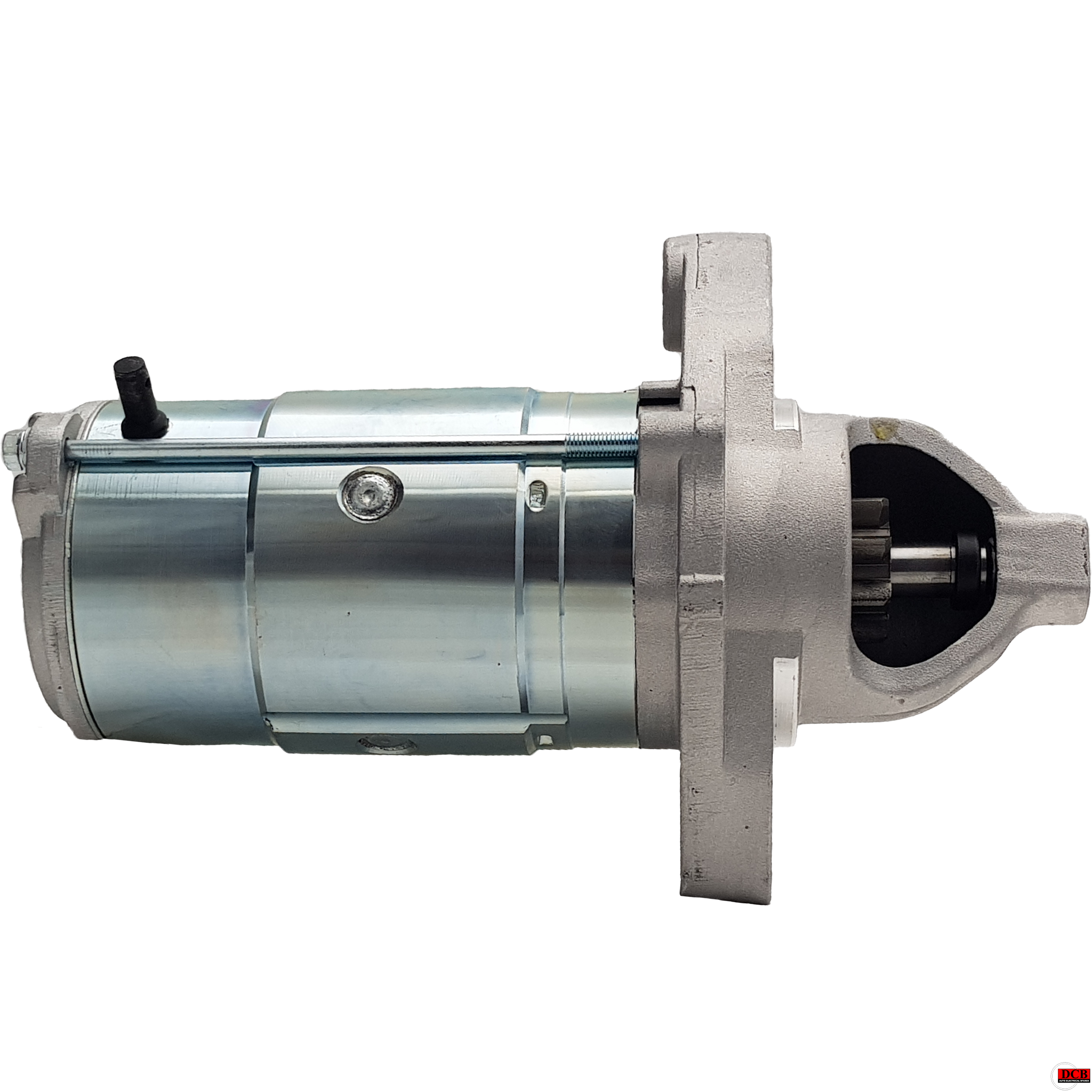

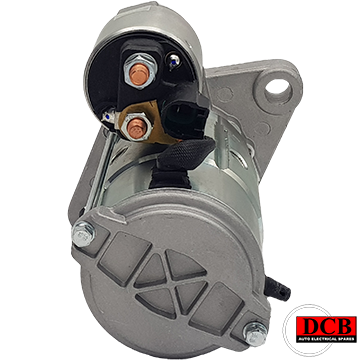

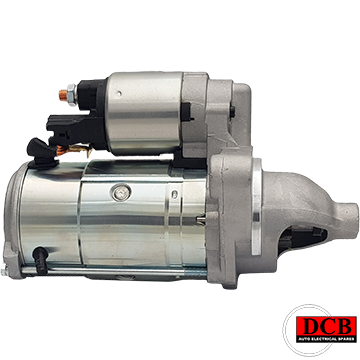

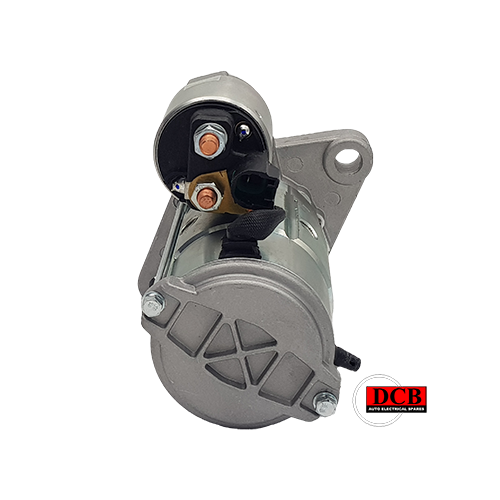

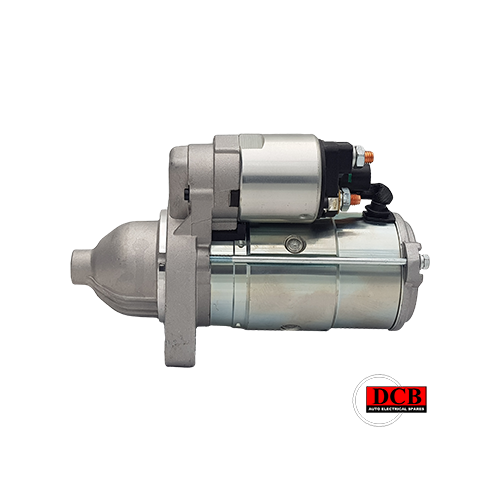

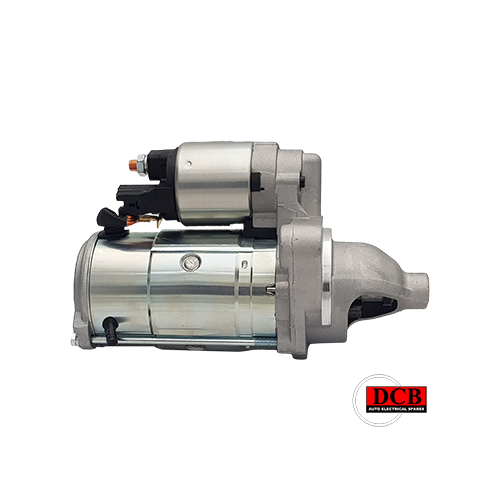

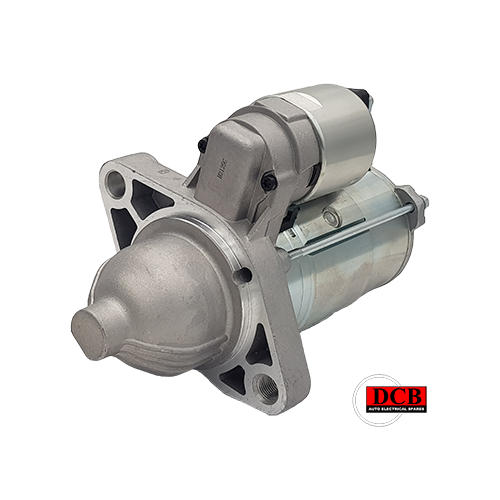

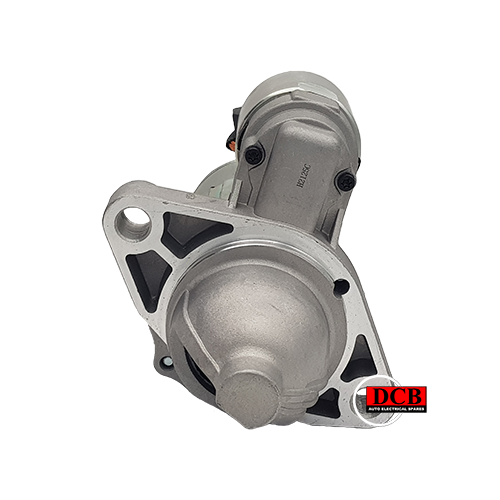

Starter motor, Toyota Avensis TS24 2.0L D4D, 2.2L D4D, 12V, 2.0KW, 8T

Voltage: 12V
Power: 2.0KW
No of Teeth: 8
Mounting holes: 2
Rotation direction: CW (CLOCKWISE)
Gearing type: PMGR (PERMANENT MAGNET - GEAR REDUCTION)
Item model: TS24
Engine type/number:
TOYOTA AURIS 2.0L D4D TOYOTA AURIS 2.2L D4D TOYOTA AVENSIS 2.0L 16V D4D TOYOTA AVENSIS 2.0L D4D TOYOTA AVENSIS 2.0L D4D AUTOMATIC TOYOTA AVENSIS 2.0L D4D ESTATE TOYOTA AVENSIS 2.2L 16V D4D TOYOTA AVENSIS 2.2L 16V D4D AUTOMATIC TOYOTA AVENSIS 2.2L D4D TOYOTA AVENSIS 2.2L D4D 16V AUTOMATIC TOYOTA AVENSIS 2.2L D4D ESTATE TOYOTA COROLLA 2.0L D4D TOYOTA RAV4 2.2L D4D TOYOTA RAV4 2.2L DCAT TOYOTA VERSO 2.0L 16V D4D TOYOTA VERSO 2.0L D4D TOYOTA VERSO 2.2L D4D TOYOTA VERSO 2.2L DCAT TOYOTA VERSO 2.2L DIESEL
OEM Number: TS24E3, TS24E330, 281000R020
Alternate Part#: • A=Centre to Centre of Mounting Holes • A1=Centre to Centre of Mounting Holes • A2=Centre to Centre of Mounting Holes • A3=Centre to Centre of Mounting Holes • B=Centre to Centre of Mounting Holes • B1=Centre to Centre of Mounting Holes • B2=Centre to Centre of Mounting Holes • B3=Centre to Centre of Mounting Holes • C=Centre to Centre of Mounting Holes • C1=Centre to Centre of Mounting Holes • C2=Centre to Centre of Mounting Holes • C3=Centre to Centre of Mounting Holes • D=Distance from Face Flush to where Bendix/Drive is Forward/Engaged • E=Bendix-Drive at Rest (Distance from Face Flush to where Bendix/Drive is at Rest) • F=Distance from Face Flush to where Solenoid Ends (Including Terminals) • G=Spigot Outside Diameter (Where Starter Fits into Bell Housing) • H=Nose Width at thickest point. • I=Outside Diameter of Bendix/Drive Gear (Vernier Locked on Teeth) • I2=Outside Diameter of Bendix/Drive Gear (Max OD) • J=Total Height of Starter • K=Total length of starter • KW=Kilowatts • L=Clockwise (CW) or Anti/Counter Clockwise (CCW) • MH=Number of Starter Mounting Holes • N=Nose Length From Face Flush to End of Nose • ODY=OD of Yolk/Field Coil Housing • S=Same as "G" - Spiggot OD (Drive End Bracket Spec Diagram) • Teeth=Number of Teeth • U=Inside Diameter of Mounting Hole and if Threaded • U1=Inside Diameter of Mounting Hole and if Threaded • U2=Inside Diameter of Mounting Hole and if Threaded • UDS=Distance of Mounting Hole from Spiggot • UDS1=Distance of Mounting Hole from Spiggot • UDS2=Distance of Mounting Hole from Spiggot • V=Inside Diameter of Mounting Hole and if Threaded • V1=Inside Diameter of Mounting Hole and if Threaded • V2=Inside Diameter of Mounting Hole and if Threaded • VDS=Distance of Mounting Hole from Spiggot • VDS1=Distance of Mounting Hole from Spiggot • VDS2=Distance of Mounting Hole from Spiggot • VOLTS=Volts • W=Inside Diameter of Mounting Hole and if Threaded • W1=Inside Diameter of Mounting Hole and if Threaded • W2=Inside Diameter of Mounting Hole and if Threaded • WDS=Distance of Mounting Hole from Spiggot • WDS1=Distance of Mounting Hole from Spiggot • WDS2=Distance of Mounting Hole from Spiggot • X=Inside Diameter of Mounting Hole and if Threaded • X1=Inside Diameter of Mounting Hole and if Threaded • X2=Inside Diameter of Mounting Hole and if Threaded • XDS=Distance of Mounting Hole from Spiggot • XDS1=Distance of Mounting Hole from Spiggot • XDS2=Distance of Mounting Hole from Spiggot

Product code: STR00150
